| Für Ihre Information: | |
|---|---|
|
|
Array
| Bildnummer | Product name | Price |
|---|---|---|
| 1 | nut-ring | price |
| 2a | cross pipe g=520 | price |
| 2b | cross pipe g=480 | price |
| 2c | cross pipe g=686 | price |
| 3 | o-ring | price |
| 4 | copper ring | price |
| 5a | push rod pl 25 | price |
| 5b | push rod pl 30 | price |
| 6 | shaft, short | price |
| 7 | cotter pin | price |
| 8 | shaft | price |
| 9 | wheel fork | price |
| 10 | shaft, long | price |
| 11 | tubular pin | price |
| 12a | nylon wheel | price |
| 12b | vulkollan wheel | price |
| 12c | poly wheel | price |
| 12d | steel wheel | price |
| 13 | tubular pin | price |
| 14 | copper ring | price |
| 15 | o-ring | price |
| 16 | o-ring | price |
| 17 | valve unit | price |
| 18 | spring | price |
| 19 | washer | price |
| 20 | lock ring | price |
| 21 | pin | price |
| 22 | nut-ring | price |
| 23 | pin | price |
| 24 | valve arm | price |
| 25 | setting nut | price |
| 26 | nut | price |
| 27 | spring | price |
| 28 | washer | price |
| 29 | chain drive rod | price |
| 30 | chain link | price |
| 31 | chain | price |
| 32 | chain drive rod | price |
| 33 | copper ring | price |
| 34 | pump cylinder | price |
| 35 | oil seal | price |
| 36 | spring | price |
| 37 | nut-ring | price |
| 38 | tubular pin | price |
| 39 | shaft | price |
| 40 | distance tube | price |
| 41a | nylon wheel | price |
| 41b | vulkollan wheel | price |
| 41c | poly wheel | price |
| 41d | steel wheel | price |
| 42 | bogie fork | price |
| 43 | release spring | price |
| 44 | sheet bearing | price |
| 45a | bogie nylon | price |
| 45b | bogie vulko | price |
| 45c | bogie poly | price |

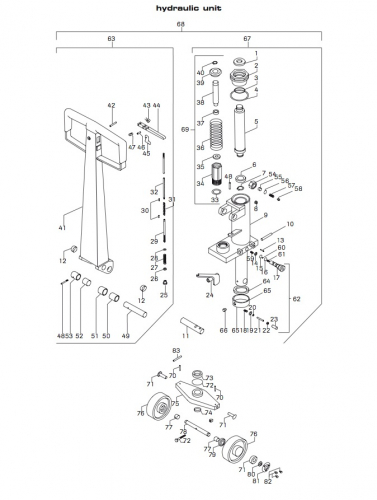

| Bildnummer | Product name | Price |
|---|---|---|
| 1 | nut-ring | price |
| 2 | main nut | price |
| 3 | o-ring | price |
| 4 | copper ring | price |
| 5 | lifting piston | price |
| 6 | nut-ring | price |
| 8 | plug | price |
| 9 | base plate | price |
| 10 | shaft | price |
| 11 | bolt | price |
| 12 | bearing bush | price |
| 13 | tubular pin | price |
| 14 | copper ring | price |
| 15 | o-ring | price |
| 16 | o-ring | price |
| 17 | valve unit | price |
| 18 | spring | price |
| 19 | washer | price |
| 20 | lock ring | price |
| 21 | pin | price |
| 22 | nut-ring | price |
| 23 | pin | price |
| 24 | valve arm | price |
| 25 | setting nut | price |
| 26 | nut | price |
| 27 | spring | price |
| 28 | washer | price |
| 29 | chain drive rod | price |
| 30 | chain link | price |
| 31 | chain | price |
| 32 | chain drive rod | price |
| 33 | copper ring | price |
| 34 | pump cylinder | price |
| 35 | oil seal | price |
| 36 | spring | price |
| 37 | nut-ring | price |
| 38 | pump piston | price |
| 39 | securing ring | price |
| 40 | lock ring | price |
| 41 | tiller arm | price |
| 42 | tubular pin | price |
| 43 | release spring | price |
| 44 | trigger | price |
| 45 | release trigger | price |
| 46 | tubular pin | price |
| 47 | threaded cross-head | price |
| 48 | tubular pin | price |
| 49 | axle | price |
| 50 | distance tube | price |
| 51 | roller | price |
| 52 | bearing bush | price |
| 53 | distance tube | price |
| 54 | plug for safety valve | price |
| 55 | adjusting screw | price |
| 56 | o-ring | price |
| 57 | spring | price |
| 58 | cone | price |
| 59 | spring | price |
| 60 | ball | price |
| 61 | overload pin | price |
| 62 | repair kit valve unit | price |
| 63 | tiller arm compl. | price |
| 64 | thrust ring | price |
| 65 | bearing casing | price |
| 66 | lubricator nipple | price |
| 67 | pump lift | price |
| 68 | pump lift compl. | price |
| 69 | pump cyl. repair kit | price |
| 70 | cotter pin | price |
| 71 | shaft | price |
| 72 | o-ring | price |
| 73 | ball bearing | price |
| 74 | washer | price |
| 75a | thrust plate g-520 | price |
| 75b | thrust plate g-480 | price |
| 76a | wheel nylon | price |
| 76b | wheel vulkollan | price |
| 76c | wheel poly | price |
| 77 | distance tube | price |
| 78 | shaft | price |
| 79 | ball bearing | price |
| 7 | lock ring | price |
| 81 | wheel cap | price |
| 82a | screw/vulkollan wheel | price |
| 82b | screw/nylon wheel | price |
| 83 | tubular pin | price |
| KIT | Gasket set Nilsen Holst PL15/25/30 | price |
